Skid Steer Trencher Model SE640 18-26 GPM Cup Tooth Every Other Station

Price: $7,250.00
free ground shipping
(No reviews yet) Write a Review
SKU:
SE100269 | SE23609-1
Condition:
New
Weight:
850.00 LBS

Calculate Shipping Cost

  • Boom lengths available from 30"-48" with 6"-12" chain widths to match your job's specifications. 60" boom available on SE640 high flow model.
  • 50,000 lb 2" anti-back-flex chain for tooth pattern versatility to support many soil types & conditions
  • High torque hydraulic motor for maximum digging power
  • Heavy duty boom & crumber
  • Two position manual side shift mounting
  • Replaces dedicated machines at a fraction of the cost
  • Several tooth options available: cup, shark, rock & frost

*Wear Items, Hoses, and Couplers are not covered under warranty

Must Choose Chain Size Before Adding This Item to Cart

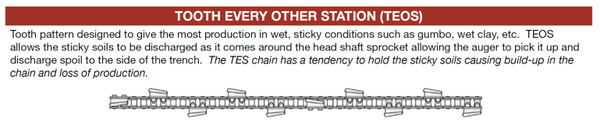

                             50,000# Chain / 2.00 Pitch / Tooth Every Other Station

Tooth pattern designed to give the most production in wet, sticky conditions such as gumbo, wet clay, etc. Cup Every Other Station allows the sticky soils to be discharged as it comes around the head shaft sprocket allowing the auger to pick it up and discharge spoil to the side of the trench. The Cup Tooth Every Station chain has a tendency to hold the sticky soils causing build-up in the chain and loss of production.

1 Year Warranty
Trench Depth:
30 in 36 in 42 in 48 in
Trench Depth High Flow:
N/A
Chain Widths:
6 in 8 in 10 in 12 in
Chain Widths High Flow:
6 in
Recommended Trenching Angle:
65°
Headshaft Height:
8 in
Spoil Discharge Reach:
18 IN
Spoil Discharge Reach High Flow:
N/A
Side Shift, to right:
17 in
Hydraulic Flow Range:
18-26 gpm
Hydraulic Flow Range High Flow:
N/A
Hydraulic PSI Range:
2000-3300 psi
If manual required please contact us
