Our Professional Series Auger Bucket - Discharge Style with Heavy Service Motor is for use with heavy or dry materials in extreme applications. This unit is designed for concrete, sand, washed gravel (3/4" max.), agricultural grains and wildlife feed. Includes multi-linked chutes (24" & 36" long) and 7' hose kit with flat faced couplers.
Reach hard to maneuver fence lines with our Auger Bucket. Quick-tach mounts on the front and back of the Auger Bucket allow for either right or left side discharge. Fill the Auger Bucket with up to 1/2 yard concrete mix (or 3/4 yard with optional extension) and easily fill post holes neatly with no spillage. Engage the auxiliary hydraulics for accurate and controlled discharge of the concrete. There is no need to wheelbarrow and shovel concrete to post holes that are difficult to reach. The Auger Bucket is operated by one person who can easily move from hole to hole. Cleaning is easy too, simply run the auger until all of the concrete material is gone then reverse the auger and spray with a hose. This Auger Bucket makes putting up fence posts easy.
1/2 yard capacity is 22 bags (80 lbs. ea.) of premix concrete. 3/4 yard capacity capable with optional hopper extension.
Accurate and controlled discharge - 1/2 yard in 50 seconds

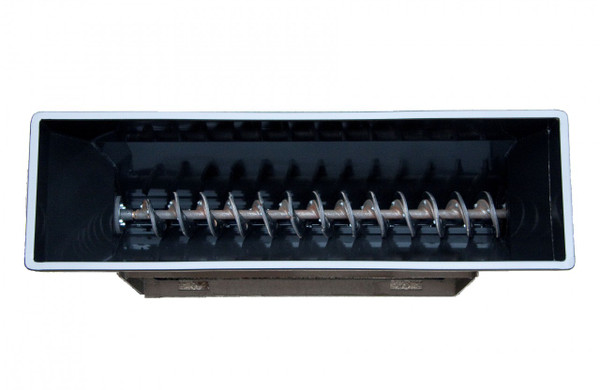

Horizontal auger with Rubber flighting and Eaton hydraulic motor drive
Replaceable protective rubber flighting prevents binding of coarse material.
Universal skid-steer attachment
*Wear Items, Hoses, and Couplers are not covered under warranty
Overall Height (A) 27"
Overall Width (B) 21-1/2"
Overall Length (C) 74-1/2"
Overall Bucket Length (D) 68-1/2"
Weight 380 lbs.
Hydraulic Requirements 12 GPM 2000 PSI
Auger Length 61-1/2"
Auger Diameter without Rubber 4"
Auger Diameter with Rubber 6-1/2"
Auger Flighting Spacing 4"
