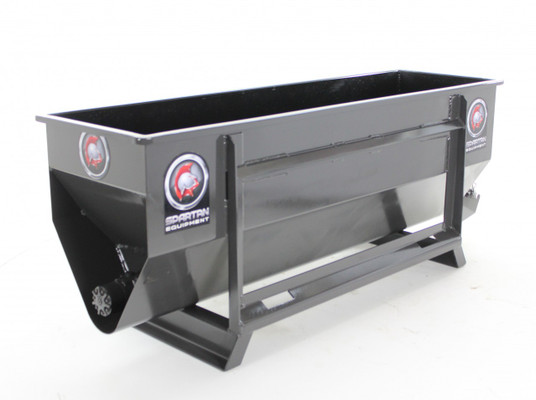

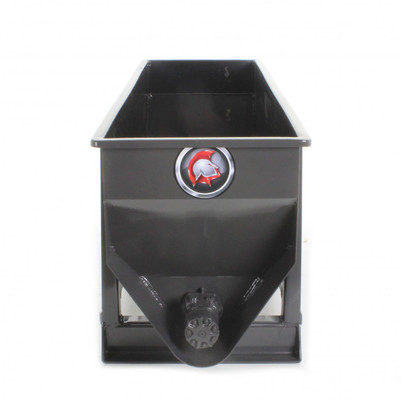

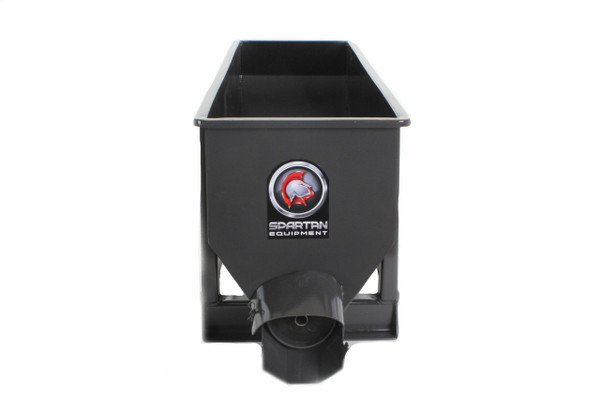

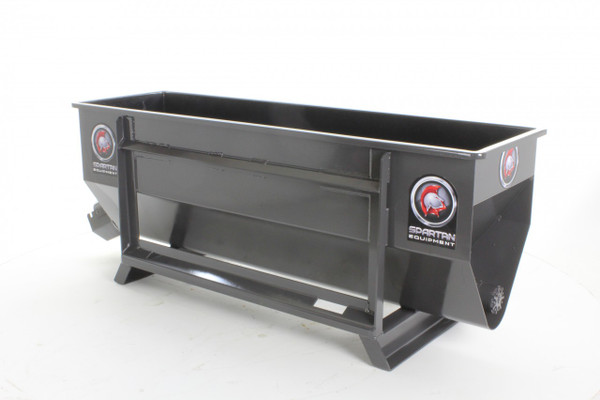

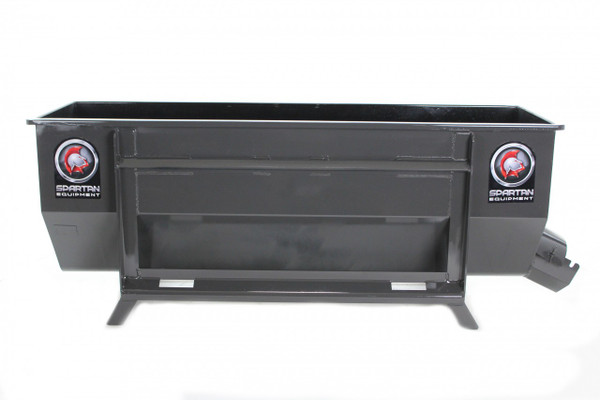

Our Professional Series Auger Bucket - For Discharging Asphalt is designed to discahrge hot asphalt and is equipped with a heavy service high temperature motor and steel auger flighting. Includes multi-linked chutes (24" & 36" long) and 7' hose kit with flat faced couplers
This unit comes equipped with a skid steer universal Quick attach frame on either side allows right or left-hand discharge. This unit includes 7' hose kit with flat face couplers and two multi-linked chutes (24" & 36" long).
Self loading from loose piles (only with cutting edge added) and excellent operator visibility for One-person operation.
1/2 yard capacity is 22 bags (80 lbs. ea.) of premix concrete (3/4 yard capacity capable with optional hopper extension)
Accurate and controlled discharge - 1/2 yard in 50 seconds
Horizontal auger with steel flighting and Eaton hydraulic motor drive
Universal skid-steer attachment
*Wear Items, Hoses, and Couplers are not covered under warranty
Overall Height (A) 27"
Overall Width (B) 21-1/2"
Overall Length (C) 74-1/2"
Overall Bucket Length (D) 68-1/2"
Weight 380 lbs.
Hydraulic Requirements 12 GPM 2000 PSI
Auger Length 61-1/2"
Auger Diameter without Rubber 4"
Auger Diameter with Rubber 6-1/2"
Auger Flighting Spacing 4"
