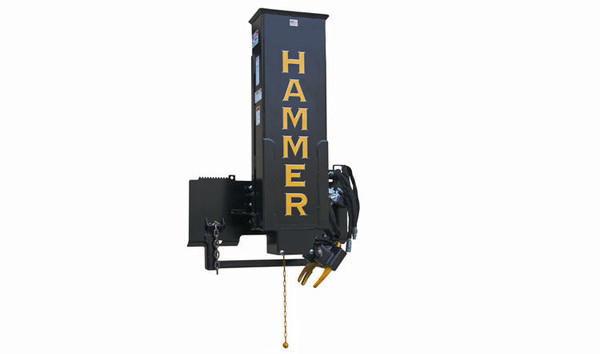

Post Driver Attachment With Power Tilt and Grapple (One Man Operation)

Price: $13,150.00
free ground shipping
(No reviews yet) Write a Review
SKU:
SE21003
Condition:
New
Weight:
1,245.00 LBS

Calculate Shipping Cost

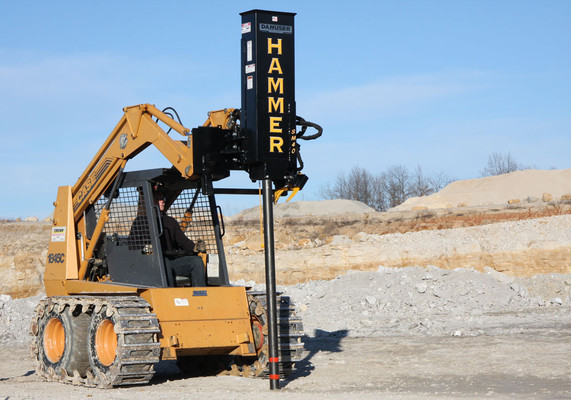

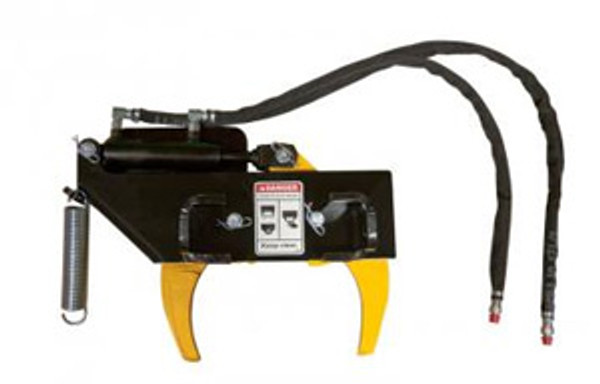

Our self-contained Post Driver with Power Tilt and Grapple is the choice for fencing contractors, landscapers, ranchers, farmers, and maintenance departments. Skid-steer maneuverability allows the unit to be easily moved around buildings, storage sheds, trees and other obstacles, with minimal hydraulic power.  This unit is set up to make it easy for a one man operation.  This unit gives the operator the ability from within the operators cab station, to grab the post with the grapple attachment.

Powered by a minimum of 10 gpm, our post driver can drive a 4” to 5” post into the ground in less than 15 seconds.

  • Pile driving technology
  • Manually adjusted variable speed to adjust stokes per minute
  • Up to 35 blows per minute
  • Drives posts straight and true on almost any terrain
  • Easy and fast
  • Powerful, simple design drives steel, wood, or even railroad ties
  • Rugged and reliable

*Wear Items, Hoses, and Couplers are not covered under warranty

1 Year Warranty (does not cover wear items or hoses & couplers)
Weight:
1,245 lbs
Height:
64 in
Length:
45.5 in
Width:
25.5 in
Max Post Size Capacity:
8.5 in x 9.25 in
Min Post Size Capacity:
T Post (Not Included)
Min. Post Height Driven:
8 in Above Ground Level
Hammer Weight:
500 lbs
Hammer Weight w/ Optional Added Ballast:
530 lbs
Impact Energy at 500 lb. Weight::
1,700 ft-lbs
Impact Energy at 530 lb. Weight::
2,200 ft-lb
Tilt Degree in Either Direction:
20°
If manual required please contact us
