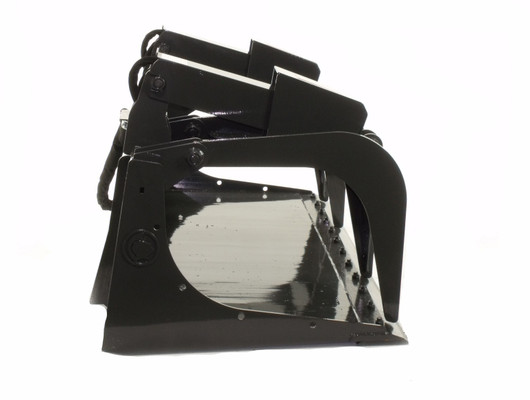

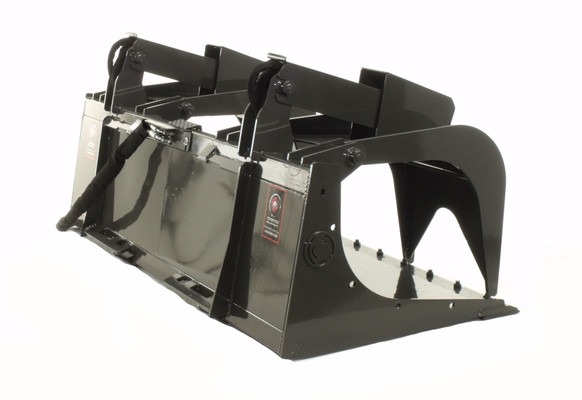

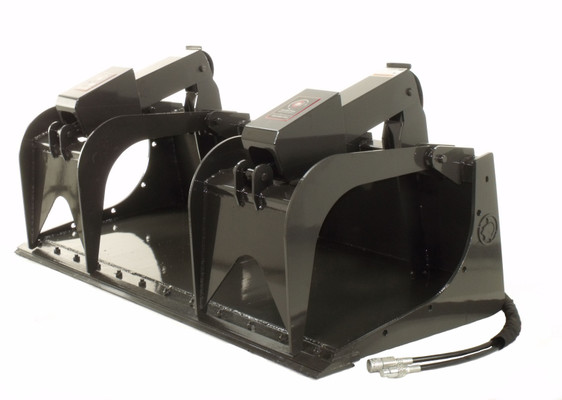

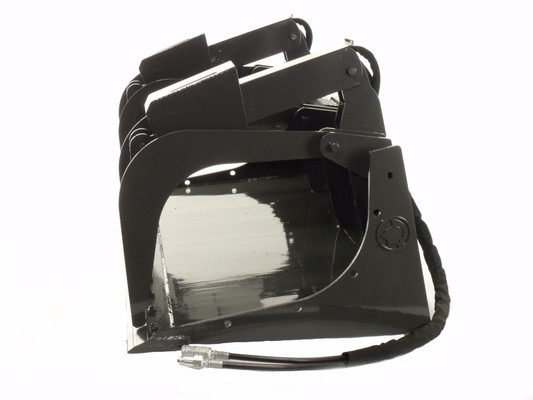

Our Professional Series grapple bucket attachment combines the loading and leveling actions of a skid steer bucket with the "grabbing ability" of two hydraulic grapples. This design is for skid steer / compact track loaders and tractors in the 45-65 HP range. The grapple bucket attachment's basic design allows it to load and grapple large and / or uneven objects as well as clean up the smallest debris.
Our grapple buckets feature enclosed cylinders and hoses to protect against debris and stray limbs. We have also increased the depth of the bucket - giving it a larger loading capacity than ever before. Reinforced 1/2" ribbed bottom reduces bowing and wear of the grapple bucket. We use a 3/8" reinforced body and 1/2" tines, with the unique feature of having cylinder barrel covered with rod covers.
The cylinders have a 2" bore and 10" stroke. We also protected the hydraulic lines by routing them inside of tubing to protect from falling debris and other wear and tear. Every pivot point has a grease fitting, and it comes standard with a 3/4" X 6" welded on cutting edge (may also add a reversible Bolt On Edge).
*Wear Items, Hoses, and Couplers are not covered under warranty
Available in six sizes: 60", 66", 72", 78", 84"
| Size (width) |
66" | 72" | 78" | 84" |
| Depth | 33.5" | 33.5" | 33.5" | 33.5" |
| Height | 34" | 34" | 34" | 34" |
| Weight (lbs.) | 750 | 800 | 850 | 900 |
| Grapple opening | 38.6" | 38.6" | 38.6" | 38.6" |
| Cutting edge | 3/4"X 6" | 3/4"X 6" | 3/4"X 6" | 3/4"X 6" |
